ソーラートライアングルバラスト平屋根取付システム

専門メーカーとして、当社は高品質のソーラートライアングルバラスト平屋根取付システムを提供したいと考えています。フラットルーフマウントシステムは、非貫通設計のさまざまなフラットルーフソーラーパネル設置用に設計されています。 Topfencesolar が設計したこのバラスト固定システムは、屋根に貫通する必要がなく、屋根に水が漏れるリスクを排除します。これは商用および産業用平屋根用途に最適なソリューションであり、ヨーロッパ、北アメリカ、MENA、APAC 地域でよく使用されており、十分に実績があります。。
ブランド：トップフェンスソーラー
製品素材:Al6005-T5
製品機能:屋上太陽光発電用バラスト模型設置
耐用年数:25歳以上

お問い合わせを送信 PDFダウンロード

製品説明

As a trusted China manufacturer and supplier, Topfencesolar professionally produces high-quality Solar Triangle Ballast Flat Roof Mounting System for global markets. Our factory operates under strict quality standards and provides complete documentation, testing reports, and export support to ensure smooth international procurement. Request a quotation today and get free samples directly from our certified China factory.

The high-performance solution features our innovative Solar Triangle Ballast Flat Roof Mounting System

Solar Triangle Ballast Flat Roof Mounting System

1. Perforation-free design: Avoid the risk of roof leakage caused by roof destroy mounting, our solution is suitable for residential flat roof or commercial roof scenarios with high waterproof requirements.

2. Harsh environmental withstanding: The wind resistance can resist up to 60m/s wind speed, reduce the risk of overturning.

Quick installation: Topfencesolar Optimized Solar Triangle Ballast Flat Roof Mounting Systemsupports easy transport and fast installing.

3. Adjustable: The angle of triangle ballast coudl be adjusted based on the real sitaution, making the solar panel mounting in a way that enables them to fully absorb sunlight.

Solar Triangle Ballast Flat Roof Mounting System

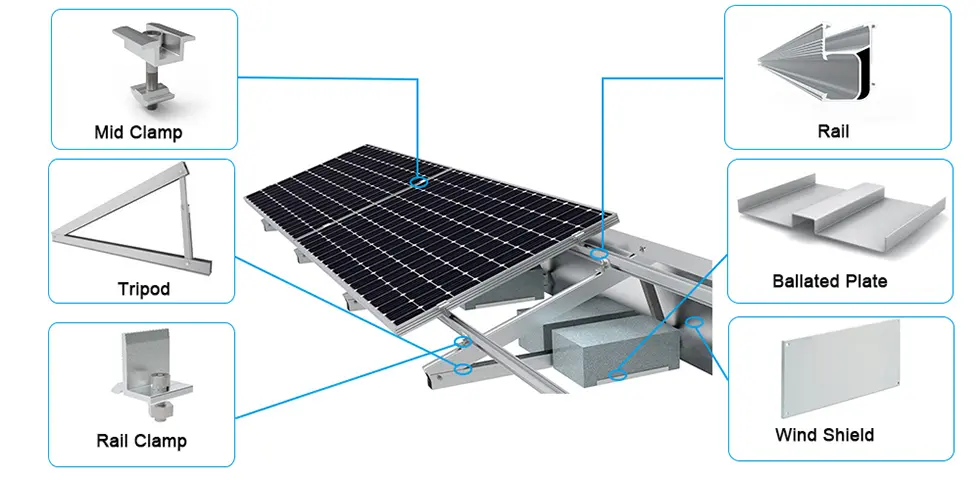

Components:

Solar Triangle Ballast Flat Roof Mounting System

Structure Parameter:

Module: Triangle Ballast

Material: Aluminum alloy 6005-T5 main structure; SUS304 fastener accessories

Applicable components: Double glass/single glass frame from 30mm-40mm

Angle: 10°~30°(adjustable)

Module Orientation: Landscape or Portrait

Wind speed withstanding:60M/S with1.4KN/m2 snow loading

Certification: TUV, UL, AS/NZS1170

Warranty: 10 years

Service Life: Over 25 years

Why Choosing triangle structure for Solar Panel mounting on Flat Roofs?

As the professional Solar Triangle Ballast Flat Roof Mounting System manufacturer, 100% waterproof protection: No damage to flat roof, no drilling. Completely eliminate the concerns about water leakage.

Long-term service: no maintenance costs and this structure extends its service life.

Adjustable triangle solar mounting system could make full use of the efficiency of solar power generation by adjusting the heights and panel facing angles.

Solar Triangle Ballast Flat Roof Mounting System

Modes	Topfencesolar Ballast Solution	Traditional Penetration Bracket
Installation method	Ballast block fixed, zero drilling	Need to penetrate the roof, break the waterproof layer
Installation speed	Fast (no waterproofing required)	Slow (glue or seal required)
Reversibility	Remove at any time, no damage to roof	The roof needs to be repaired after demolition

Packing and Lead Time:

Topfencesolar are offering customization for Flat Solar Roof Ballast Mounting Kits, we have the regular lead time and packing for reference:

Selling Units	Per meter/ per pcs	Package Type	Inner packing:wrapping paper/film/carton;
			Outer packing: wooden case
Lead Time：	Quantity(Sets) Est.	1 - 1000	1001 - 5000	5001 - 10000	>10000
	Time(days)	14	20	25	To be negotiated
